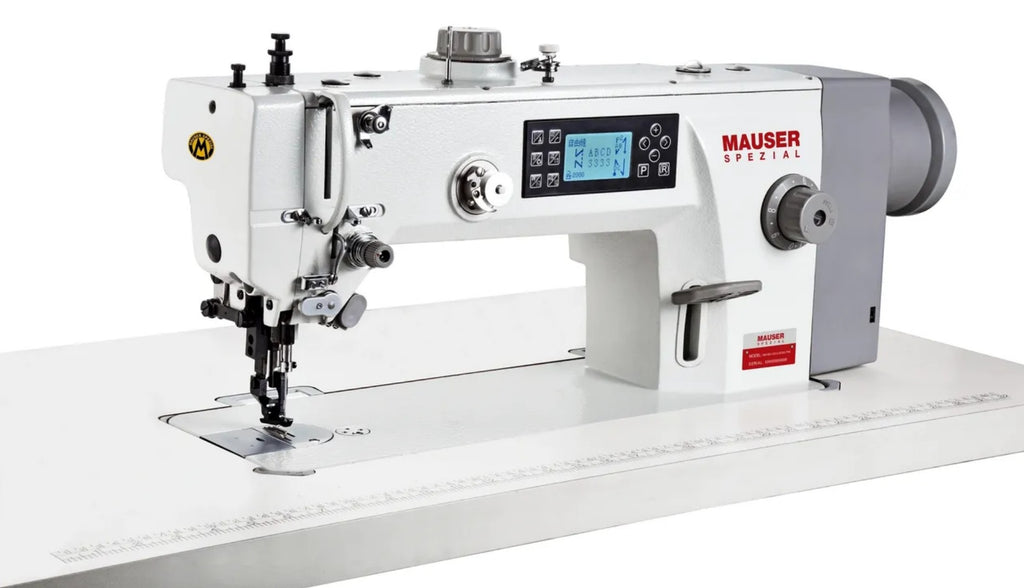

MH-1641-E3
Single Needle Direct Drive Walking Foot (Shuffle type) Lock Stitch with thread trimmer
Description
Mauser Spezial introduce this break through model Walking Foot machine . Powerful 750w direct drive motor with easy to use control panel gives you complete control with smooth delivery . With an arm clearance of 330mm (13") right of the needle and 150mm (5.9") under the arm you can handle bulky material with ease. The foot lift of 16mm allows easy insertion of the sewing goods. Large horizontal (side load) sewing hook gives you perfect seams.
Suitable for – Upholstery , Leather Goods , Automotive , Marine , Awnings, Tarpaulins , Tents , Shade Sail and technical textiles
Features
- Automatic Thread Trimming.
- Power saving direct drive motor
- Programable back tacks
- Foot lift – 16mm
- Oil pump lubrication
- LED Needle Lamp
- Top mounted bobbin winder
- Complete with table and wheeled stand
Specifications
Maximum Sewing Speed: 2200 spm
Max. Stitch Length : 9mm
Presser Foot Lift : Manual Hand Lever, Knee Press Lever
Adjustable Foot Pressure : Yes
Needle Type : 135x17 - #18/110 – 23/160
Thread – Ticket 40 – Ticket 20
Downloads
MH-1641 Brochure
