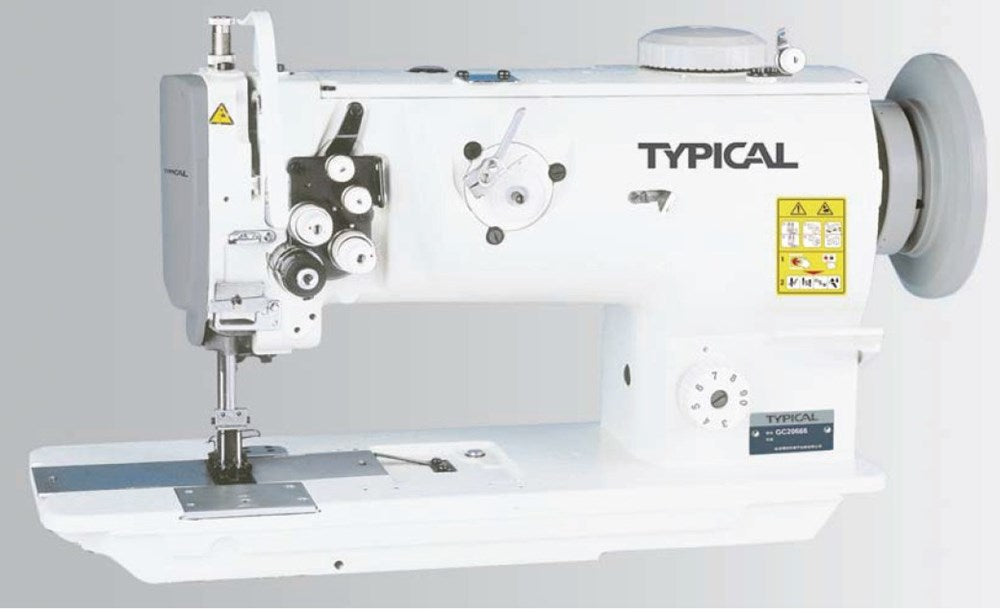

Typical GC20666 Twin Needle Walking foot
Double Needle Compound Feed Walking Foot Machine
Reliable two needle walking foot machine . Basic simple to use Double Needle Walking foot machine to gives a uniform finish to product . No more sewing twice and having uneven rows of stiches . Save time and get a better result.
Description
Medium Heavy Duty, Double Needle, Lockstitch machine with walking foot, large bobbin & reverse. The Typical GC20665-CX is for sewing such as upholstery, automotive, marine , Flags, Shade Sails etc .
Features
- Large Rotary Hooks and bobbins.
- Upper and Lower feeding (Walking Foot)
- Knee foot lift.
- Reverse Feed.
- Dial adjusting foot feed height
- Dial Adjusting Stitch length
- Clutch motor or Digital Servo
- Complete on table and wheeled stand
- Thread stand
Specifications
Maximum Sewing Speed : 2500 spm
Sewing Space : L260xH100
Needle Type : DPX17 (135X17) size 19/120 ? 23/160
Max Thread Size : Metric 8 Ticket 300
Foot lift height : 16mm
Maximum Stitch Length : 9mm
Included Accessories
6 x Bobbins
1 x Packet of needles
Manual
Cover
Screw driver
