COMING SOON Juki DDL-8000C Automatic Plain Sewer , Direct Drive , Auto Foot Lift NEW

Sale
Regular price $1,990.00

DDL-8000C

Direct-drive, High-speed, 1-needle, Lockstitch Machine with Automatic Thread Trimmer (Electric Feed Length Control System )

Juki have taken the best parts of the DDL-900C and the DDL-8000A – and created their best machine yet . With extra sewing space , electronic feed with reverse lever this machine delivers the best sewing experience so far.

With new generation direct drive motor , double blade trimmers to get extra short thread tail , oil shielded aluminium cast oil sump . This machine is smooth and a dream to use . Comes with both knee lift and stepping motor auto foot lift.

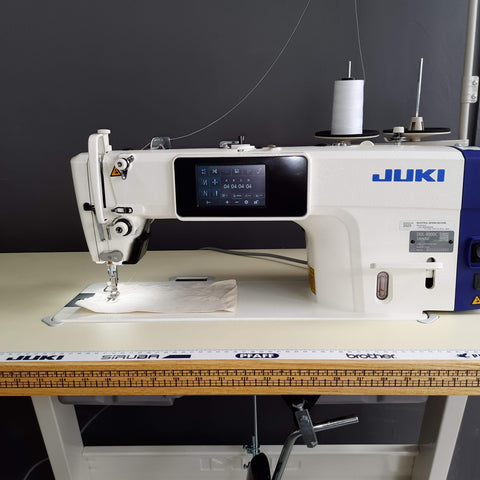

The user interface is an easy to use Color LCD Touch panel

Weather your looking to upgrade your older machine or your looking to get your first machine The Juki DDL8000C is now the new best machine on the market for both design and production.

Features

· 1-needle (DBX1 , 16x231 needle system)

· USB Port

· Oil Sheilding Sytem

· Electronically controlled feed system

· Direct-drive motor

· Automatic functions (thread trimmer, back tack, foot lift )

· In-built control panel

· High-speed sewing performance (5,000 sti/min)

· Stitch length adjustment up to 5mm

· Automatic lubrication system

· Assembled complete with top and wheeled stand

· With Auto and manual foot lift

· Max. sewing speed - 5000 sti/min

· Max. stitch length - 5mm

· Max. presser foot lift - 13mm - (by knee)

· Side-loading bobbin -( 212932909 )

· Needle System - (16x231 Size 80-110)

EFLeCS with various functions Electric Feed Length Control System (EFLeCS) with a digital pitch With the stepping motor used to control the feed mechanism, the feed pitch is adjusted with the color LCD touch panel control. The high-clarity display of the touch panel promises excellent visibility to enhance workability. Reverse feed length setting and condensed stitch are possible. The machine is also able to sew design stitch. Condensed stitch The condensed stitch can be set from the panel to fine-tune the stitch length at the end of a seam to prevent the seam from unraveling. Design stitch Digitalized needle feed mechanism enables sewing of many different sewing patterns with ease. Feed-amount fine-adjustment function Stitch length can be controlled sensibly with reverse feed lever equipped as standard. The machine newly has a choice of stitch length adjustment function by knee lifter. This function makes possible to adjust stitch length without using hands, so it helps difficult processes which require handling by both hands. One-touch change over function The stitch length and maximum sewing speed can be changed over with one-touch action of the hand switch. Control box & USB port The control box is integrated with the machine head to facilitate machine setup, and now comes with a USB port for charging. Since the USB port is provided as standard for the control box. Oil Shielding System In order to prevent oil stains on sewing products, the sewing machine has adopted the “Oil Shielding System” which is integrated into the sewing machine bed. The needle bar is lubricated with a smaller quantity of oil as compared with the conventional model. In addition, oil which externally splashes is shielded by the frame oil recovery mechanism and automatic oil circulation mechanism. This structure contributes to the achievement of the maximum sewing speed of 5,000sti/min and also to increased productivity. Elimination of oil stains on sewing products Oil is stored in the oil-shielded made of highly rigid aluminum die cast which is integrated into the machine head and provides increased cooling performance. The oil-shielded has increased sealing performance as compared with a plastic oil tank and effectively prevents oil leakage and tank breakage.



Product Downloads Brochure Parts List Instruction Manual
