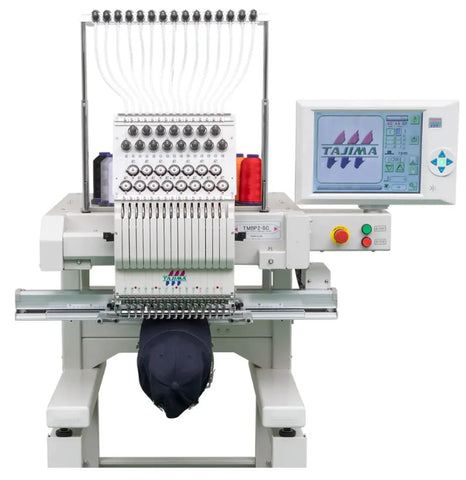

Tajima TMBP2-S1501C (360x500)

Compact, Single Head, 15 needle Embroidery Machine – Standard Model

Description

The TMBP2-SC Single-head, cylinder type, standard model embroidery machine with basic functions. It handles up to 15 colours and is suitable for name and emblem embroidery on uniforms, hats, socks, bags, etc., and for embroidery processing in stores. Despite its compact body, the machine is equipped with 15 colours and a wide embroidery field of 360 mm (14.4inches) (D) x 500 mm (20 inches) (W) to meet a variety of needs.

Engineered to the highest quality Tajima TMBP2-SC will give you finished result the other manufactures can only dream of producing.

Made in Japan

Features

Large Embroidery Field

With an embroidery field of 360 mm (14.4inches) (D) x 500 mm (20 inches) (W), it is ideal for large embroidery designs such as large bags and the backs of T-shirts, sweatshirts, etc.

Long slim cylinder beds for small goods

The smaller diameter of the cylinder bed and the smaller bobbin cover allows for easy embroidery on tubular finished products such as sleeves and pockets.

Fast and clean cap Embroidery

Large-diameter shaft makes it easy for anyone to install the cap frame. Three-point locking between the drive ring and cap frame provides more stable fixation, less needle breakage and pattern misalignment, and operation at a maximum speed of 1,000 rpm.

Note - Cap frame is available as an option

User-Friendly Design

This machine offers a wide variety of operator-friendly functions and options. This reduces operator workload while ensuring high quality embroidery production and smooth machine operation.

12.1-inch touch panel

The large 12.1-inch operation panel—one of the largest in the industry—features convenient icons and allows you to switch the language used for operating the machine.

New auto thread trimming device

Eliminating the picker makes exchanging bobbins easier. It also provides more stable trimming and a 40% improvement over conventional machines in shortening thread tails on the reverse side of the fabric.

Design position adjustment function(corrects framing misalignment)

Even if the fabric pattern is slanted in framing, it can be corrected from the operation panel, with no need for repeated attempts to reframe.

Included Accessories

·        Threader

·        Needle Threader

·        Spare Bobbin Case

·        Bobbins

·        Needles

·        Needle Key

·        Assorted Tools and Gauges

·        Brush

·        Oil

Optional Accessories

Talk to us about adding

·        Madeira Embroidery Thread

·        Backing Pack

·        Loading Board

·        Embroidery Scissors

·        2 x size 12 Frames 120mm

·        2 x size 15 Frames 150mm

·        2 x size 18 frames 180mm

·        Digitizing Software

·        Bobbin Winder

·        Delivery, Installation and training.

Specifications

15 Needle

Maximum Sewing Speed : 1200 rpm
Sewing Area (max.) : 360mm x 500mmmm
Weight: 95kg
Power Consumption : 160W
Power Supply : Single Phase 200-240v 50hz/60hz

S

Downloads

TMBP2-SC Brochure
