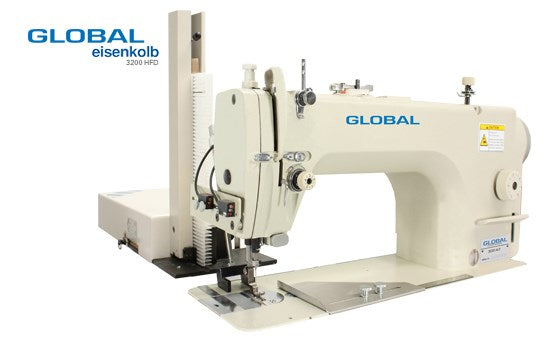

Global 3200 AUT HFD 2000 Hook Pleating Machine
Do you want to be able to pleat and attach Eisenkolb Plastic adjustable curtain hooks but cant yet stretch to the EPS or MPS Eisenkolb machine – then the Global 3200 AUT with Eisenkolb HFD2000 attachment is the machine you need.
This machine will increase your productivity and allow you to use the Eisenkolb Microflex Adjustable hooks as used by the major curtain manufacturers.
– Semi automatic lockstitch curtain hook attaching machine with fully automatic curtain hook feeding device.
• Versatile Global semi automatic high speed curtain hook attaching machine, for hook-sizes of 55 mm, 75 mm, 95 mm.
• Quick load hook container, stores up to 100 hooks.
• Fully automatic curtain hook feeding device with automatic adjustment of the hook-height between 5 and 50 mm in steps of 5 mm.
• Sensor controlled positioning of the hook exactly under the needle.
• Special tack program for fixation of the pleats ( separate operation).
• Capacity up to 1500 hooks a day.
Global 3200 AUT HFD complete set up, direct drive servomotor, auto presser footlifter, assembled with HFD 2000, L96 stand and table top
The product specifications for the Global 3200 HFD 2000 :
Machine speed: max. 2500 SPM
Oiling system: semi dry
Needle type: 134 R
Microflex hooks; the ultimate perfection
– adjustable curtain hook
– sewn-in curtain hook for pinch pleats
– designed for automated processing
– no sharp parts, no risk for injuries
– made of high grade synthetic and highly UV-resistant
– available in 3 different lengths: 55, 75 and 95 mm
Please contact us to enquire about this product
